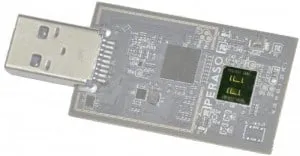

The PRS1025/1125 products deliver unprecedented levels of silicon efficiency to the WiGig market. The silicon area is less than 5mm2, and the packaged devices are 49mm2 and 36mm2 respectively. Key features of the product include:
* P1dB: 14dBm
* EIRP (integrated antenna version): 24dBm
* Receiver noise figure : 4dB
* Transmit EVM: -24dB (64QAM, single-carrier)
* Receiver Noise Figure of 5dB
* Frequency band: 57GHz – 66GHz
* Support up to MCS12 of IEEE802.11ad specification
* High-speed 1.5 Gb/s OOK mode.
